- 4 roller carriage offers good load capacity in all directions.
- Standard and custom lenghths.
- Low profile.
- Patent Pending compliant rail feature.

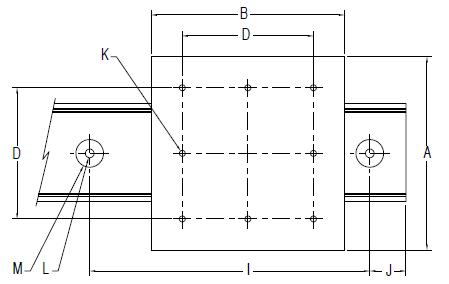

DIMENSIONS(INCHES)
SIZE |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
CARRIAGE |
RAIL |
VQ-1 |
3.500 |
3.500 |
.313 |
2.375 |
1.188 |
1.500 |
0.750 |
.0.125 |
4.000 |
1.500 |
#6-32 UNC |
5/32 |
.50 x .15 DP |
VQC-1 |
VQR-1 |
VQ-2 |
4.750 |
4.750 |
.375 |
3.750 |
1.500 |
2.000 |
1.000 |
0.125 |
6.000 |
1.500 |
1/4-20 UNC |
9/32 |
.75 x .25 DP |
VQC-2 |
VQR-2 |
VQ-3 |
6.500 |
6.500 |
.375 |
4.500 |
1.755 |
2.500 |
1.250 |
0.130 |
8.000 |
1.500 |
5/16-18 UNC |
11/32 |
.75 x .30 DP |
VQC-3 |
VQR-3 |

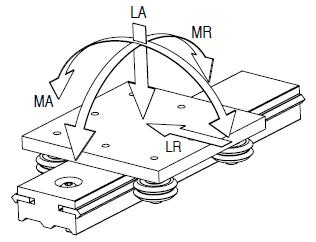

LOADCAPACITY
|
LBS. |
FT-LBS. |
SIZE |
LA |
LR |
MA |
MR |
VQ-1 |
228 |
268 |
175 |
175 |
VQ-2 |
560 |
644 |
680 |
680 |
VQ-3 |
1528 |
1382 |
2349 |
2349 |
Working load capacities reflect
lubricated wheel/track interface.
ORDERING
LINEAR GUIDE |
VQ-___ |
X____(INCHES) |
CARRIAGE |
VQC-___ |
|
RAIL |
VQR-___ |
X__* |
* STANDARD LENGTHS 12,24,36,48,60 INCHES
MAX LENGHT 120 INCHES
